Corrugated Polyethylene Pipe

Corrugated polyethylene pipe refers to a pipe made of polyethylene (PE) as the main raw material, made through extrusion molding process, with a corrugated wall structure

Corrugated Polyethylene Pipe Manufacturer in China

Corrugated polyethylene pipe is a flexible plastic pipe with a corrugated outer wall structure, made of high-density polyethylene or medium-density polyethylene. Due to its excellent flexibility, corrosion resistance and construction convenience, it is widely used in drainage, sewage, cable protection, agricultural irrigation and other fields.

Corrugated Polyethylene Pipe

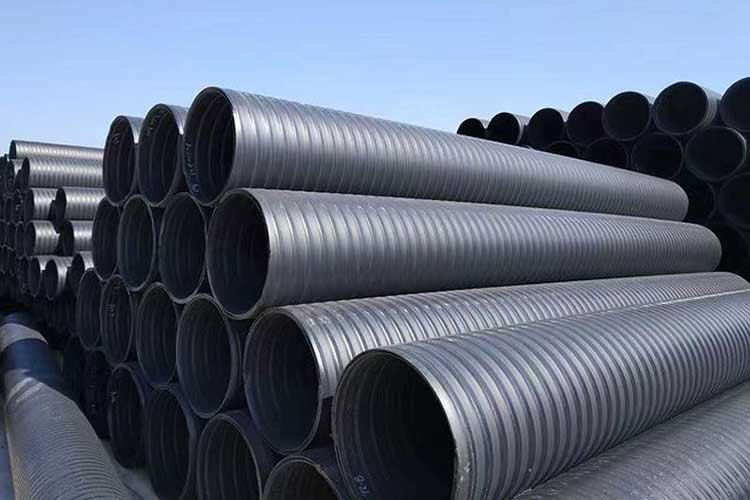

Key Features of HUALIN Corrugated Polyethylene Pipe

The outer wall of JUNTONG corrugated polyethylene pipe is regular corrugated and the inner wall is smooth. This structure greatly improves the ring stiffness (ability to resist external pressure) of the pipe without increasing the amount of material, while reducing the weight of the pipe, making it easier to transport and install. It uses high-density polyethylene (HDPE) or medium-density polyethylene (MDPE) as raw materials, has good flexibility, low-temperature resistance and chemical stability, and can be used for a long time in the temperature range of -40℃ to 60℃.

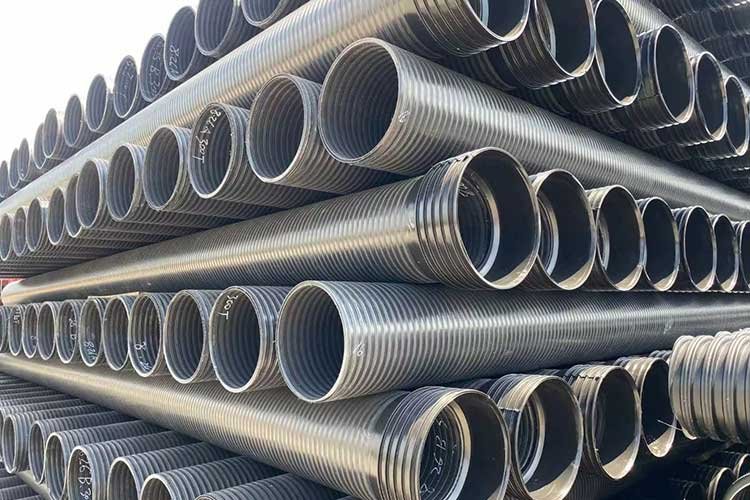

Customization Service from HUALIN

We provide professional corrugated polyethylene pipe customization services. In terms of specification customization, we can flexibly adjust the pipe diameter (DN200-DN2000mm), ring stiffness (SN2-SN16), wall thickness and length according to the actual needs of the project to adapt to different burial depths, loads and geological conditions; in terms of performance customization, we optimize the polyethylene material formula for special media or environments to enhance temperature resistance, UV resistance or chemical corrosion resistance; connection customization provides hot-melt butt, electric fusion connection, rubber ring socket and other interface forms, and customize exclusive connection solutions according to the complexity of the project; appearance customization supports pipe color and logo customization, which is convenient for project distinction and management.

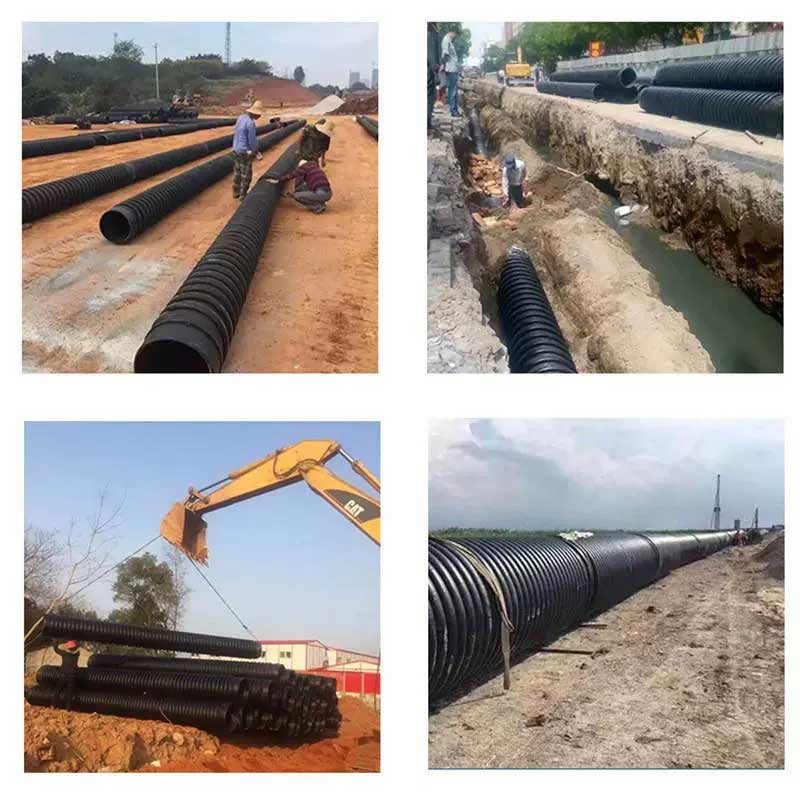

HUALIN Corrugated Polyethylene Pipe Applications Explored

In municipal engineering, corrugated polyethylene pipe is the core pipe of urban rainwater and sewage drainage system, which can effectively cope with the drainage needs in rainy season. At the same time, it is used as cable protection sleeve of underground integrated pipeline corridor to provide safety protection for power and communication lines. In the fields of water conservancy and agriculture, its corrosion resistance and flexibility make it an ideal choice for farmland irrigation pipeline network, which can adapt to the water supply needs of different terrains. It is also often used in drainage projects of reservoir dams and rural sewage collection systems. In the communications and power industries, it is often buried underground as a cable protection sleeve to resist soil pressure and external mechanical damage and ensure the stability of signal and power transmission. In industrial scenarios, it can be used for the transportation of corrosive liquids in chemical enterprises, mine tailings discharge and industrial wastewater treatment systems, and its chemical corrosion resistance ensures long-term stable operation. In addition, in environmental protection projects, such as leachate collection pipes in landfills, it is also widely used due to the advantages of environmental protection and corrosion resistance. From urban infrastructure to industrial development, corrugated polyethylene pipes continue to empower engineering construction in various fields with their diverse adaptability.

FAQ

How to install corrugated polyethylene pipe?

The following is the standard installation method for corrugated polyethylene pipes
1.Pipe inspection
Check the appearance of each pipe (no pits, cracks), dimensional tolerance and sealing ring integrity. Unqualified products are prohibited.
2.Trench excavation and foundation treatment
Excavate according to the designed route. The trench width must be 20-30cm larger than the pipe diameter; the bottom of the trench must be flat and free of stones, and a 15cm sand cushion layer must be laid and compacted.
3.Pipeline laying and connection
Use alcohol or water to remove the sand and oil stains on the inner wall of the socket and ensure dryness. The rubber sealing ring is placed in the groove between the second and third wave peaks of the socket. The number of installations is based on design requirements
4.Electric hot melt connection
Remove impurities from the heating wire area, fix the socket with a steel belt, set the temperature according to the equipment parameters, and cool naturally for ≥15 minutes.
5.Pipeline cutting and repair
When adjusting the length, vertical sawing and grinding of the section are required. Local damage can be repaired with a hot air gun and welding rods.
6.Backfill and acceptance
The first layer is covered with fine sand or soft soil ≥30cm from the top of the pipe, and compacted manually; the thickness of each subsequent layer is ≤20cm, and the mechanical compaction distance is >50cm from the top of the pipe. Sealing test: inject water into the closed pipe section and check if there is any leakage at the interface
